Magnetostrictive Displacement Sensor for Punch Press Position Control
Punch presses form the backbone of sheet metal stamping production. Precise ram positioning, stroke control and repeated motion accuracy directly determine finished part quality, die protection and production safety. Minor position deviation may cause defective workpieces or costly mould damage. The SOP R-series magnetostrictive displacement sensor delivers reliable non-contact position measurement to solve these challenges for punch press equipment.
This magnetostrictive sensor adopts non-contact measuring principles. The floating magnetic ring slides along the stainless steel sensing rod without mechanical contact or wear. It supports millions of cyclic operations, perfectly matching the high-frequency reciprocating movement of punch press slides. There is no mechanical fatigue after long continuous stamping cycles, lowering downtime and component replacement costs.
It provides high-resolution, real-time absolute position feedback for punch ram travel. The controller continuously captures ram position to regulate stroke length, stopping points and pressing depth. This capability helps manufacturers maintain consistent product dimensions across mass stamping batches. It can effectively reduce rejects caused by unstable stroke and improve stamping repeatability.
Built with robust metal housing, the sensor resists heavy vibration, mechanical shock, oil mist and metal dust commonly found in punch shop environments. It features stable signal output and good anti-interference performance, even under harsh workshop conditions. Multiple signal output options are available for seamless integration with PLC and industrial control systems.

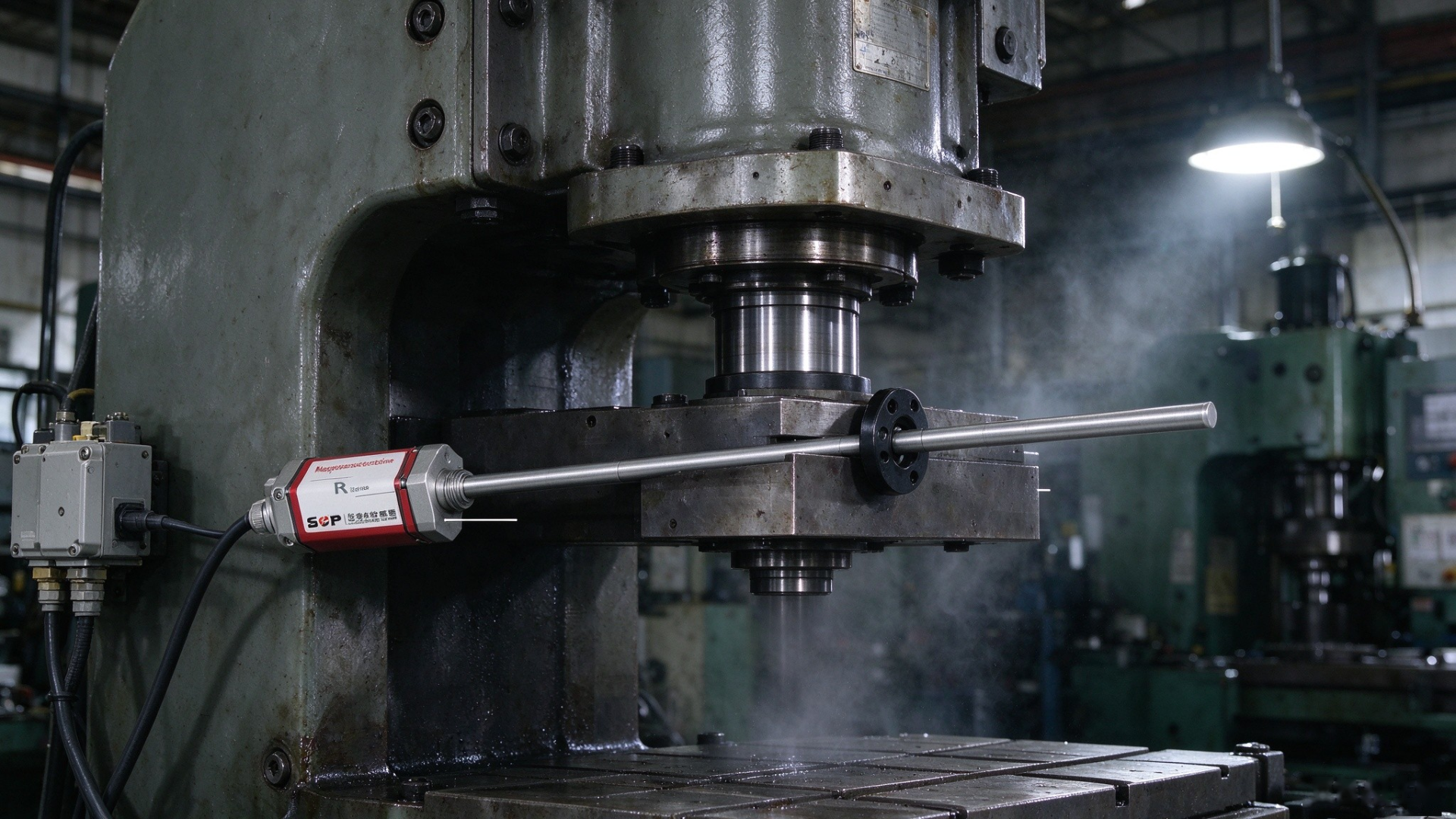

For punch press retrofits and new machine development, this magnetostrictive sensor is widely used in slide position detection, die height adjustment and press closed-loop control. It safeguards moulds, boosts stamping accuracy and raises overall equipment efficiency for metal forming workshops.
