| Place of Origin: | Jiangxi,China |
| Brand Name: | SOP |
| Model Number: | SOPSWU801 |
| Application: | Monitoring and measurement of energy consumption |
| Minimum Order Quantity: | 1 piece |
| Packaging Details: | To be packed with small box. |
| Delivery Time: | 5-10 working days after shipment by Express |
| Payment Terms: | T/T,Wechat etc |
Description:

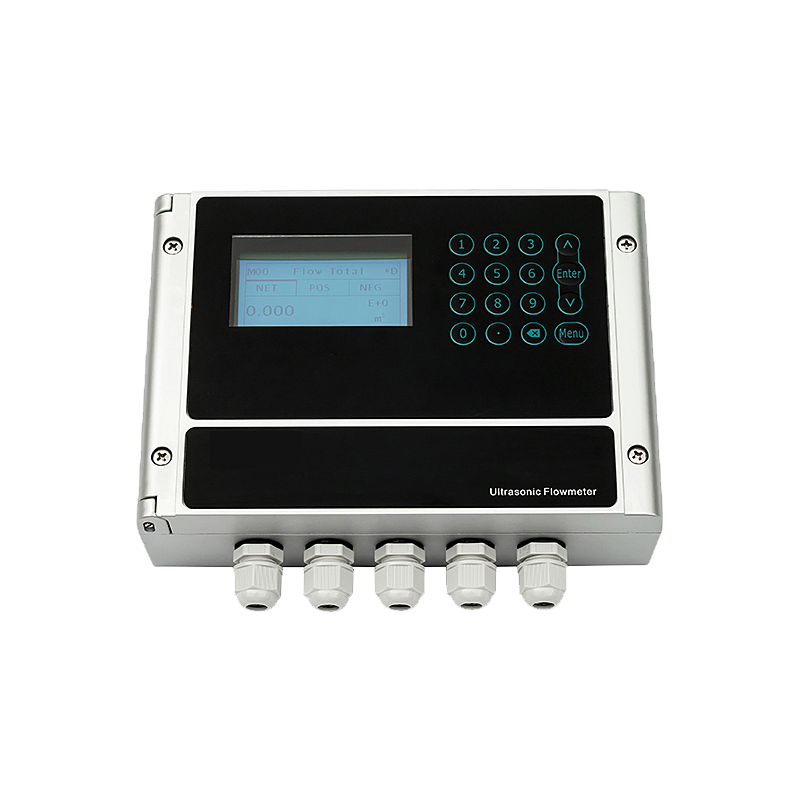

SOPSWU801 is an economical time difference ultrasonic flowmeter specifically designed for water. Compared to other ultrasonic flow meters on the market, it has the characteristics of high reaction rate, low power consumption, and high stability. Still continuing the independently developed TGA technology. TGA is a high-speed and high-precision process time measurement algorithm developed and implemented by our company through research on ultrasonic time measurement algorithms and reference to various existing TDC algorithms. The time measurement accuracy of TGA can reach tens of ps, and it also has the characteristics of simple and convenient installation of ultrasonic flow meters, which can be completed without breaking pipes or stopping water supply.
Applications:
Water treatment, hydropower station, petrochemical industry, agricultural irrigation, etc.
Pure water, ultra pure water measurement, cleaning machine printing and dyeing factory
Central air conditioning, intelligent buildings, household metering
Specifications:
| Flow range | ±0.09ft/s ~ ±16ft/s (±0.03m/s ~ ±5m/s) |
| Accuracy | ±1% of measured value |
| Repeatability | 0.2% of measured value |
Linearity |
±1% |
| Pipe size | 1"to 48" (25mm to 1200mm).Pipe size under 1” is an option |
| Fluid | Water |
| Outputs |
Analog output: 4~20mA, max load 750Ω
Pulse output: 0~10KHz |
| Communication | RS232/RS485 Modbus |
| Power supply | 10~36VDC/1A |
| Display | 240*128 back lit LCD |
| Humidity | Up to 99% RH,non-condensing |
| Temperature | Transmitter: -14℉~140℉(-20℃~60℃) Transducer:-40℉~176℉(-40℃~80℃,standard) |
| Transmitter | PC/ABS,IP65 |

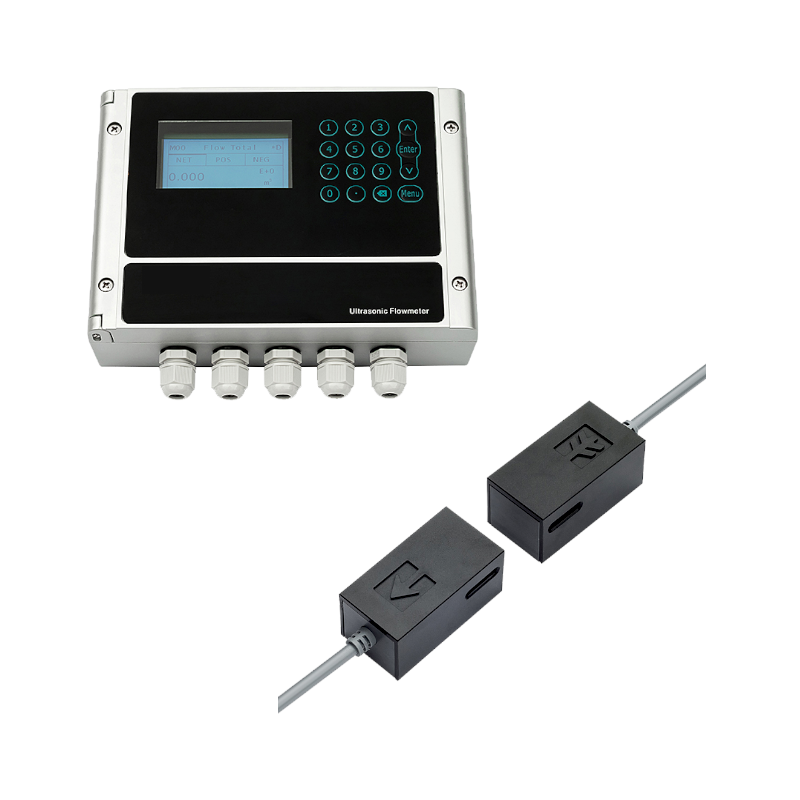

| Transducer | ABS,IP68 Encapsulated design Double-shielded transducer cable Standard/maximum cable length:30ft/900ft(9m/274m) |
Competitive Advantage:
FAQ：
1. Are you a factory or a trading company?
We are an integrated industry and trade enterprise with own factory.
2. Which products can you provide?
Our main products include load cell, linear displacement sensor, draw wire sensor, LVDT sensor, torque sensor, magnetostrictive sensor, pressure sensor and other sensors.
3. How much experience do you have in this industry?
We have been specializing in the production and sale of sensors for more than 25 years.
4. How many customers have you served?
We maintain cooperation with 5000+ clients in more than 150 countries from all over the world.
5. How can you guarantee quality?
We conduct production and management according to ISO9001 quality management system. All products have quality testing and dynamic balance before delivery by our pofessional QC.
6. What is the warranty period for your sensors?
One year.
7. Do you have products in stock?
Most models are available, please consult us for details.
8. What is the delivery time for your non spot product?
It usually takes 2 days.
9. Do you have customized service?
Yes, we support ODM/OEM.
