| Place of Origin: | Jiangxi,China |
| Brand Name: | SOP |
| Model Number: | SOPSWU811 |
| Application: | Monitoring and measurement of energy consumption |
| Minimum Order Quantity: | 1 piece |
| Packaging Details: | To be packed with small box. |
| Delivery Time: | 5-10 working days after shipment by Express |
| Payment Terms: | T/T,Wechat etc |
Description:

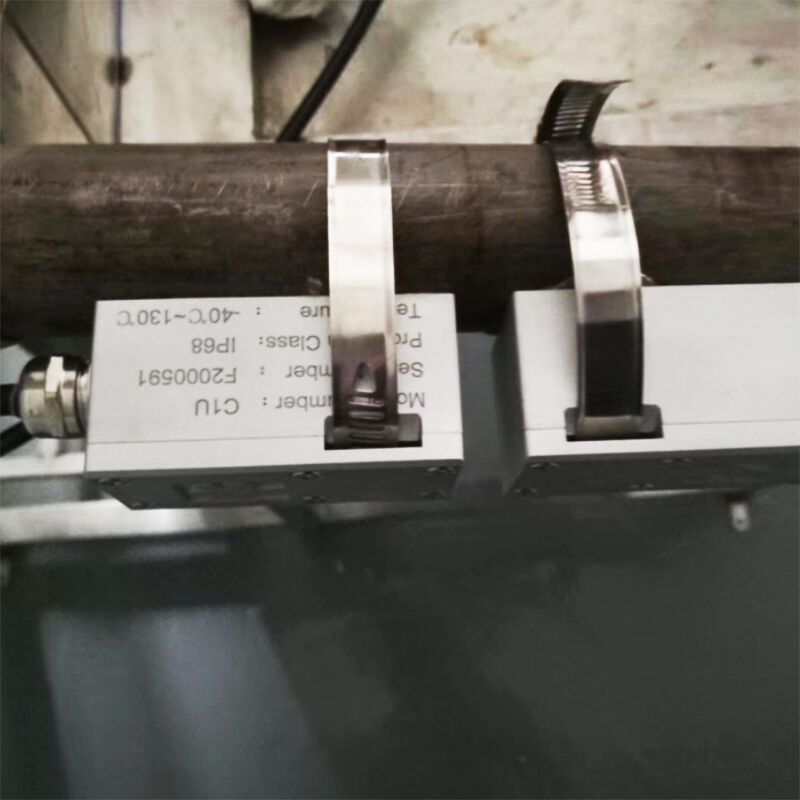

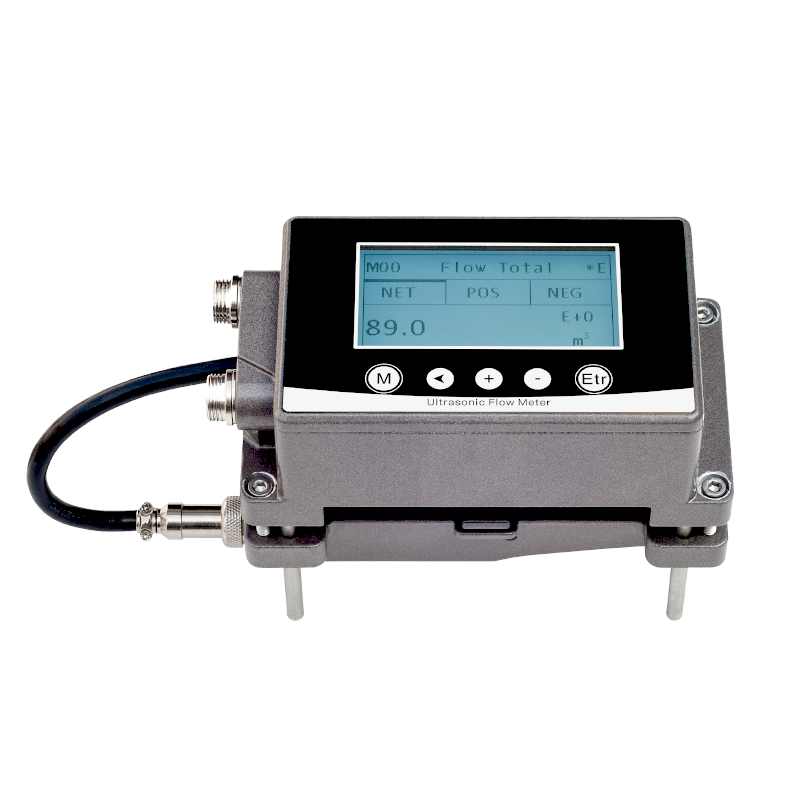

SOPSWU811 is an economical time difference ultrasonic flowmeter specifically designed for water. Compared to other ultrasonic flow meters on the market, it has the characteristics of high reaction rate, low power consumption, and high stability. Still continuing the independently developed TGA technology. TGA is a high-speed and high-precision process time measurement algorithm developed and implemented by our company through research on ultrasonic time measurement algorithms and reference to various existing TDC algorithms. The time measurement accuracy of TGA can reach tens of ps, and it also has the characteristics of simple and convenient installation of ultrasonic flow meters, which can be completed without breaking pipes or stopping water supply.
Applications:
Water treatment, hydropower station, petrochemical industry, agricultural irrigation, etc.

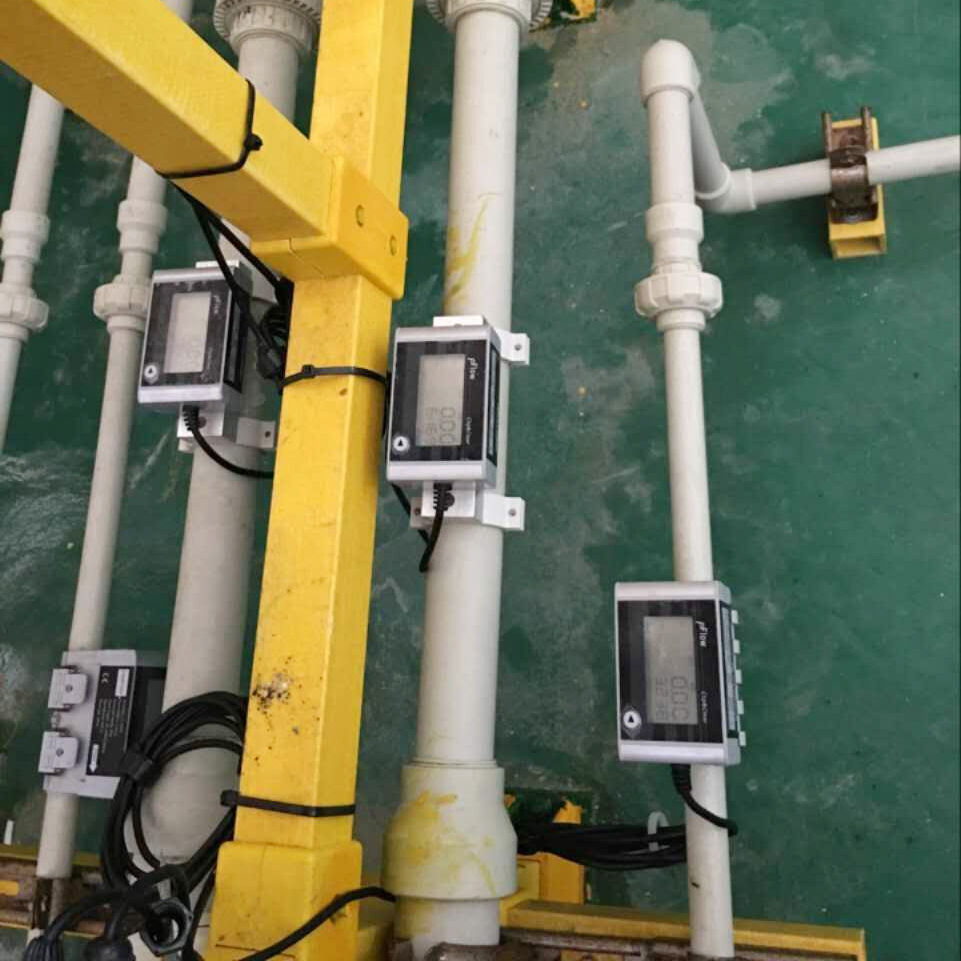

Pure water, ultra pure water measurement, cleaning machine printing and dyeing factory
Central air conditioning, intelligent buildings, household metering
Specifications:
| Pipe material | Metal /PVC, PP or PVDF rigid plastic pipe |
| Liquid type | Water/other liquid (Single liquid medium without solid particles or impurities) |
| Temperature range | 0-115℃ (No freezing on the surface) |
|
Low velocity cut off value
(Default by factory)
|
0.1m/s |
| Display | 256*128, LCD |
| Response time | 0.5~60s |
| Accuracy | ±2%, (±1% after calibration) |
| Data Storage period | 300ms |
| Memory for data backup | EEPROM (Data storage: over 10 years, data read/write frequency: over 1 million times) |
| Power and I/O connection | M12 type aviation plug |
| Output | 4-20mA |
| Communication | Modbus RS485 |
| Options for output | OCT (pulse output)/ One relay alarm (please contact the factory) |
| Power supply | 10-24V VDC |
| Electric power | < 3W |
| Protective circuit | Power reverse connection protection, Power surge protection, Output short circuit protection, Output surge protection |
| Enclosure protection class | IP65 |
| Environment temperature | -10 to 60°C (No freezing) |
| Relative humidity | 35 to 85% RH (No condensation) |
| Vibration resistance | 10 to 55 Hz, double amplitude 1.5 mm, 2 hours in each XYZ axis |
| Impact resistant | 100 m/s2 16 ms pulse, 1000 times each for X, Y and Z axis |
| Main material | Aluminum, Industrial Plastics |
| cable length | 2m(standard ), PT1000 sensor standard cable length is 9m |
Competitive Advantage:
FAQ：
1. Are you a factory or a trading company?
We are an integrated industry and trade enterprise with own factory.
2. Which products can you provide?
Our main products include load cell, linear displacement sensor, draw wire sensor, LVDT sensor, torque sensor, magnetostrictive sensor, pressure sensor and other sensors.
3. How much experience do you have in this industry?
We have been specializing in the production and sale of sensors for more than 25 years.
4. How many customers have you served?
We maintain cooperation with 5000+ clients in more than 150 countries from all over the world.
5. How can you guarantee quality?
We conduct production and management according to ISO9001 quality management system. All products have quality testing and dynamic balance before delivery by our pofessional QC.
6. What is the warranty period for your sensors?
One year.
7. Do you have products in stock?
Most models are available, please consult us for details.
8. What is the delivery time for your non spot product?
It usually takes 2 days.
9. Do you have customized service?
Yes, we support ODM/OEM.
