Jiangxi SOP Precision Intelligent Manufacturing Technology Co.,Ltd.
Jiangxi SOP Precision Intelligent Manufacturing Technology Co.,Ltd.
| Place of Origin: | Jiangxi,China |
| Brand Name: | SOP |
| Model Number: | SOPZ-011 |
| Application: | Force measurement |
| Minimum Order Quantity: | 1 piece |
| Packaging Details: | To be packed with small box. |
| Delivery Time: | 7-9 working days after shipment by Express |
| Payment Terms: | Alibaba Trade Assurance,PAYPAL, APPLE PAY, GOOGLE PAY,T/T,Wechat,Alipay,MoneyGram etc |
Quick Detail:

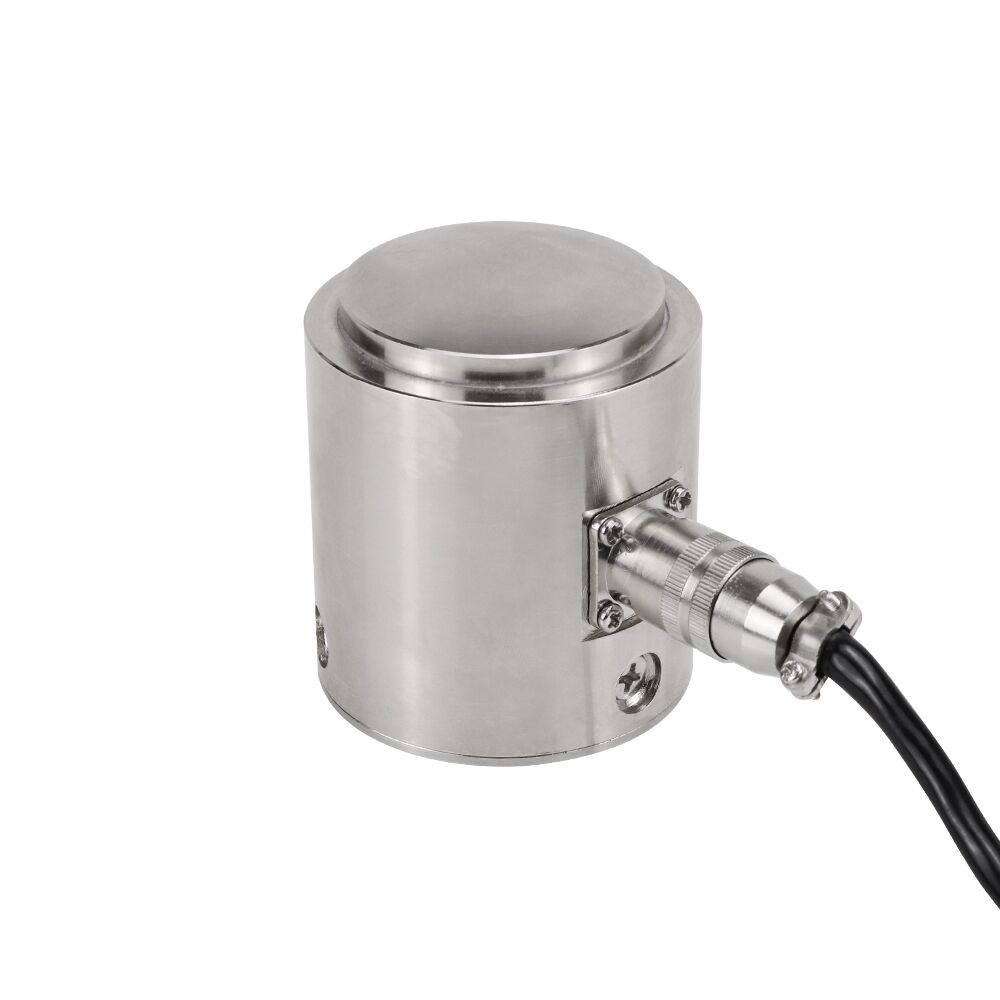

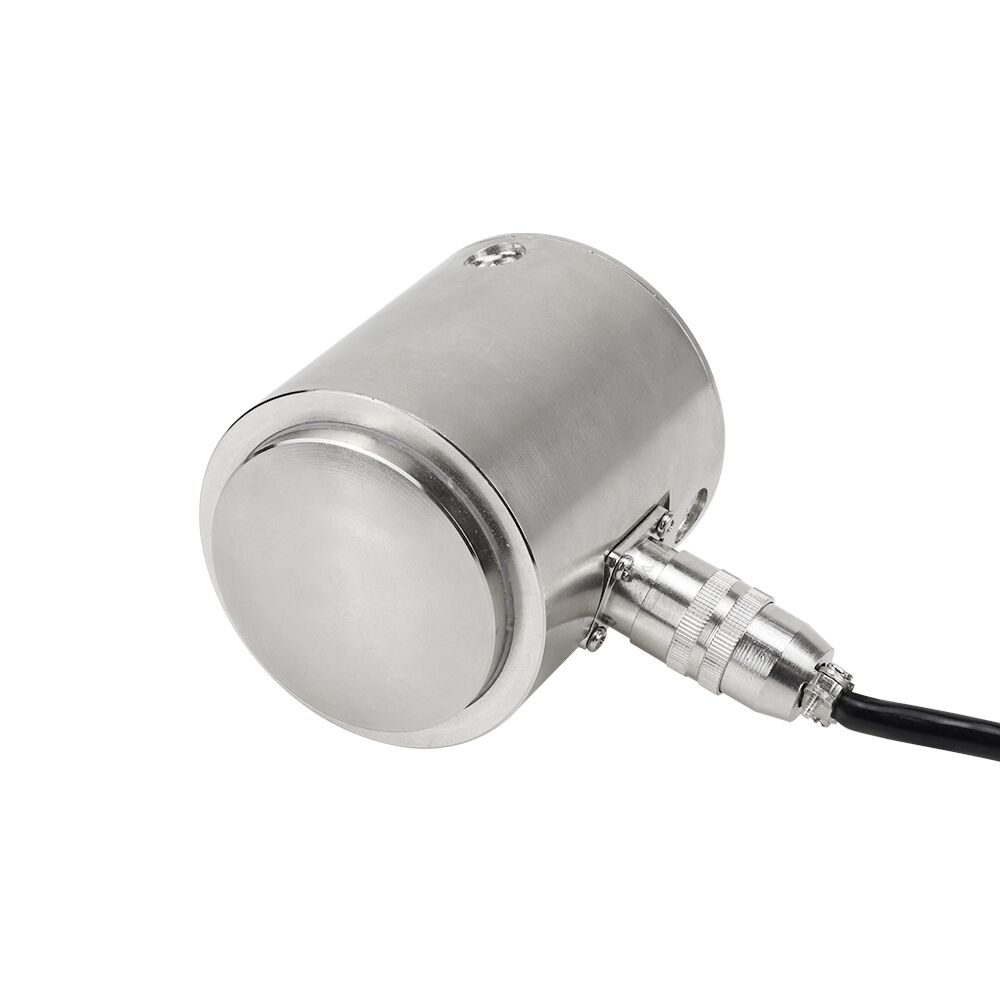

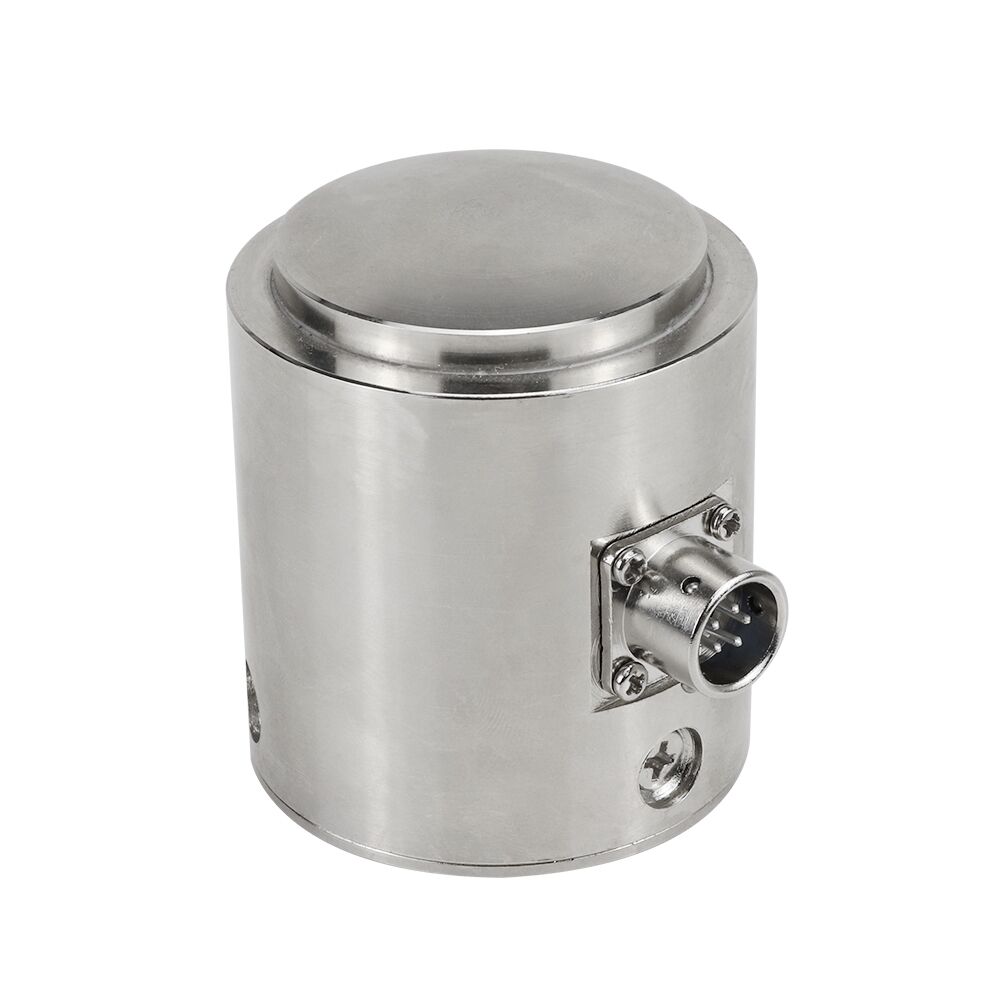

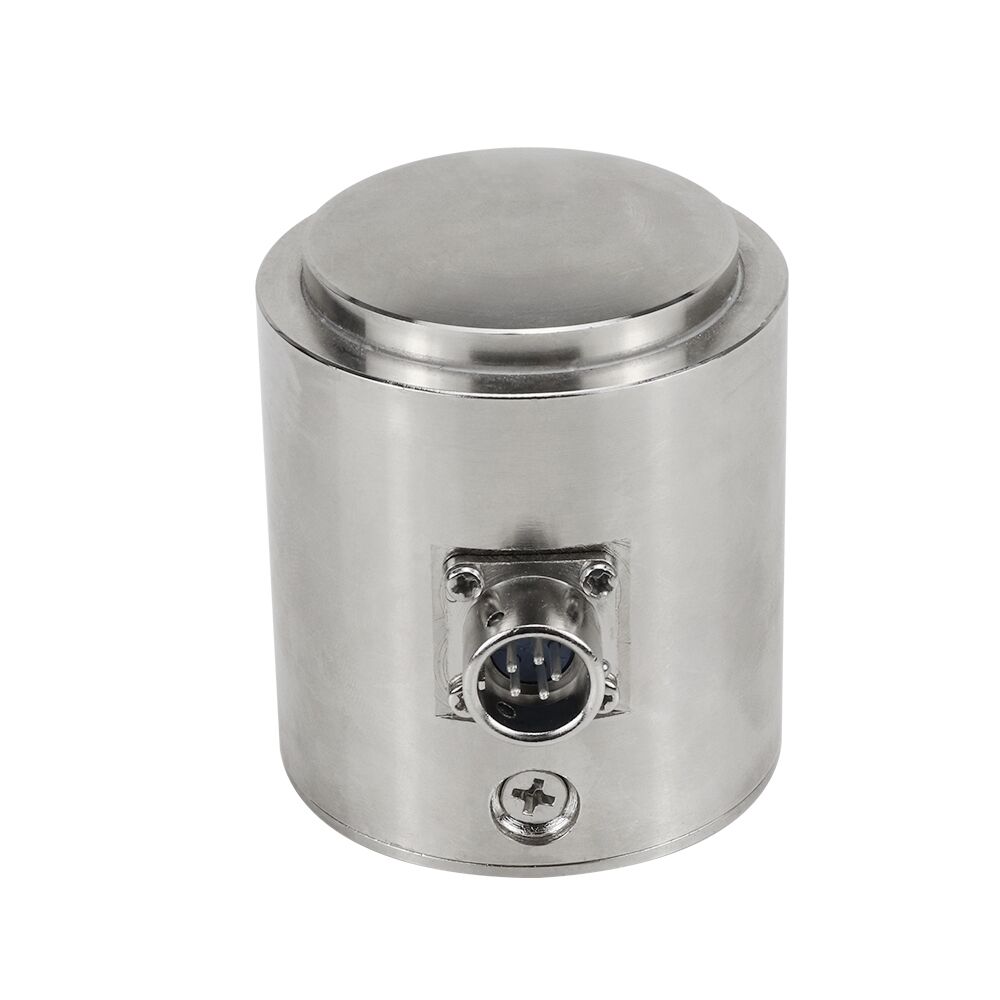

The column type load cell is mainly used in large force area such as pressure equipment, cell phone assembly, small pressure platform, testing machine, press fitting machine, hydraulic press, hot and cold presses, electronic hook scales hopper scales and other types of electronic heavy equipment and tensile testing equipment.
Applications:

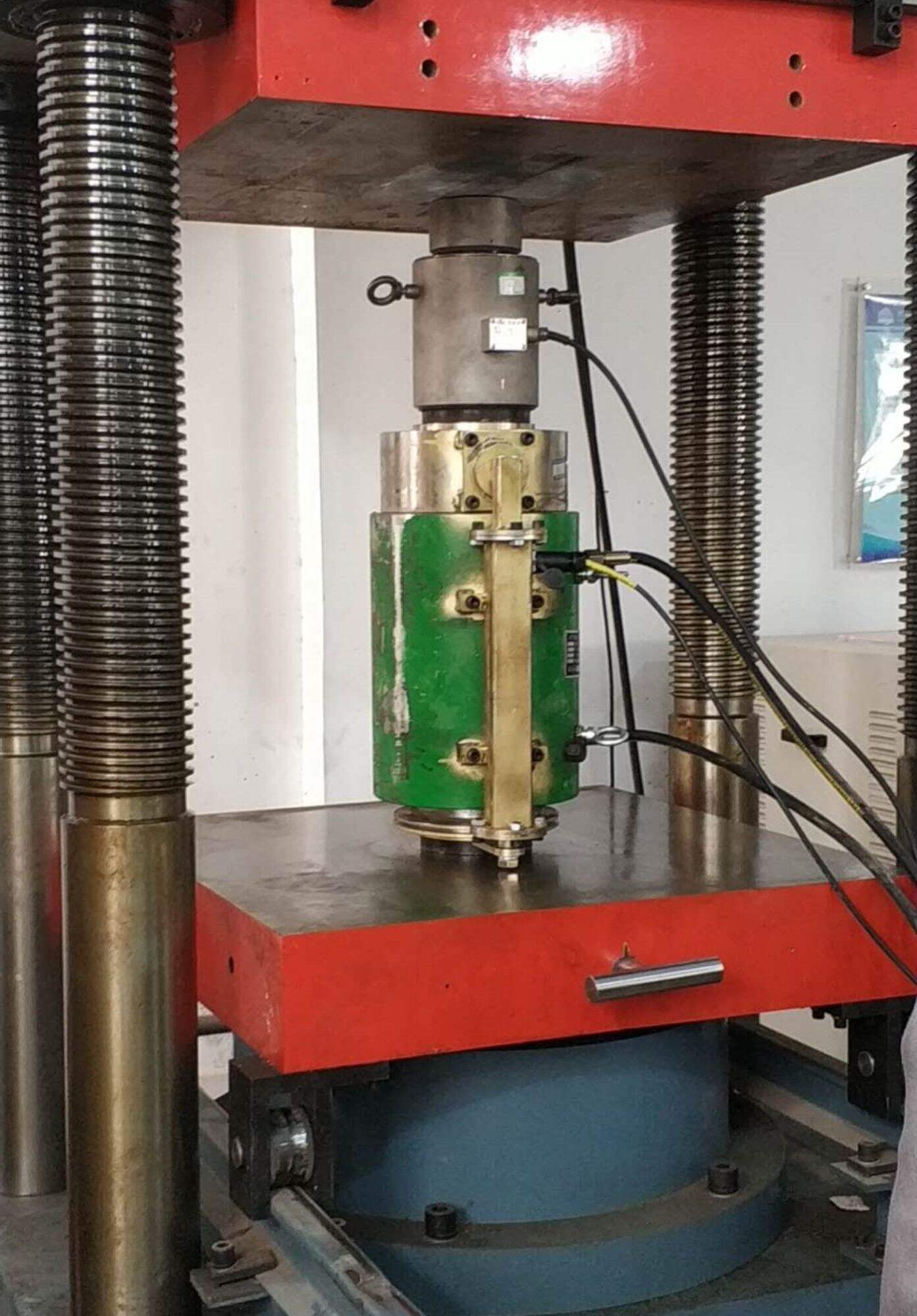

Mainly used in various types of electronic weighing equipment and tension and pressure detection equipment such as press equipment, small pressure platforms, testing machines, press machines, hydraulic presses, electronic hook scales, hopper scales, etc.
Specifications:
| Capacity | 0-1000 ton |
| Rated Output | 2.0/3.0±10%mV/V |
| Zero Balance | ±2% F.S. |
| Non-linearity | 0.3%F.S. |
| Hysteresis | 0.1%F.S. |
| Repeatability | 0.1%F.S. |
| Creep(30min) | 0.05%F.S. |
| Temp.effect on output | 0.05% F.S. / 10ºC |
| Temp.effect on zero | 0.05% F.S. / 10ºC |
| Material | Alloy steel |
| Operating Voltage Range | 5-15V |
| Operating Temp Range | -20-80℃ |
| Safe overload | 150% |
| Maximum Overload | 200% |
| Cable size | Φ5*3m |
| Cable ultimate pull | 10kg |
Competitive Advantage:
1. Wide range of capacities from 0 to 1000T.
2. Alloy steel construction.
3. High precision and compact structure.
4.Different ranges and sizes can be customized.
5.Calibration in mV/V low profile design.
