High Precision DN15-DN5000 Digital Clamp Type Ultrasonic Flow Meter Flowmeter

Description:

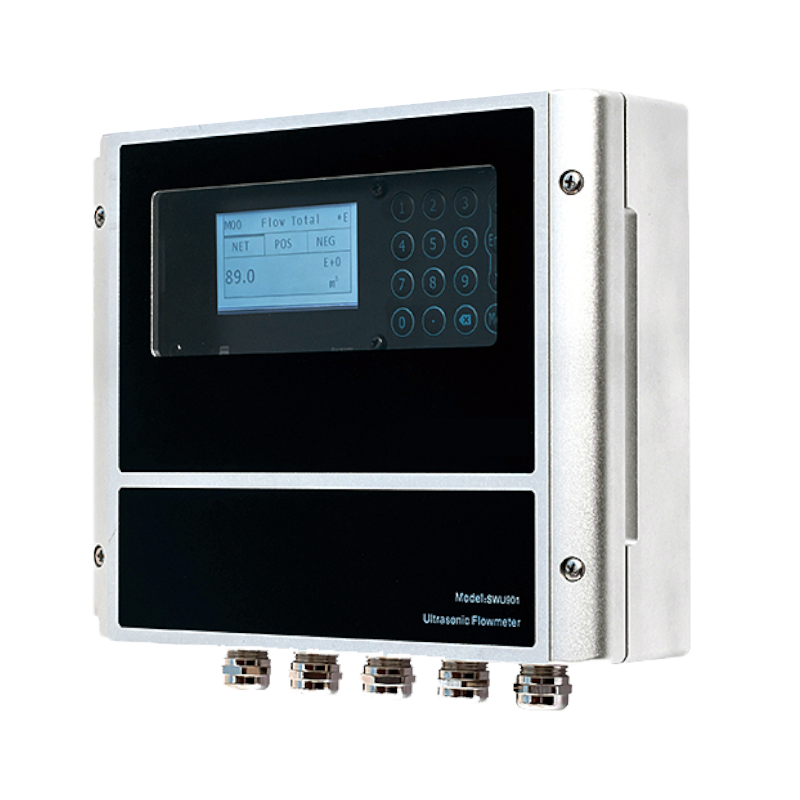

• SOPSWU901 is a wall-mount, clamp- on type ultrasonic flowmeter which use the transfer time technology. Clamp on type ultrasonic flowmeter is easy to install and no need to cut off the pipe, that saves you lots of troubles and cost，At the same time SOPSWU901 has our unique calculate software to ensure the high accuracy and low velocity response.

• It adopts TGA time measurement algorithm independently developed by us. TGA measurement technology greatly improves the sampling rate of FT101 ultrasonic flowmeter, and the measurement rate can be more than 300 times per second. Compared with other brands of products, it has greatly improved the tolerance rate of bubbles in the measured pipe diameter. It can tolerate continuous bubbles for up to 5 seconds.
• The signal strength is increased, and it has greater penetration to all kinds of scale, rust in the pipe and lining in the pipe. The maximum allowable load is 18mm in cement. With the enhanced version of the sensor, the measurement norm (practical application) of the external clamp sensor can reach 2000 mm.

Applications:

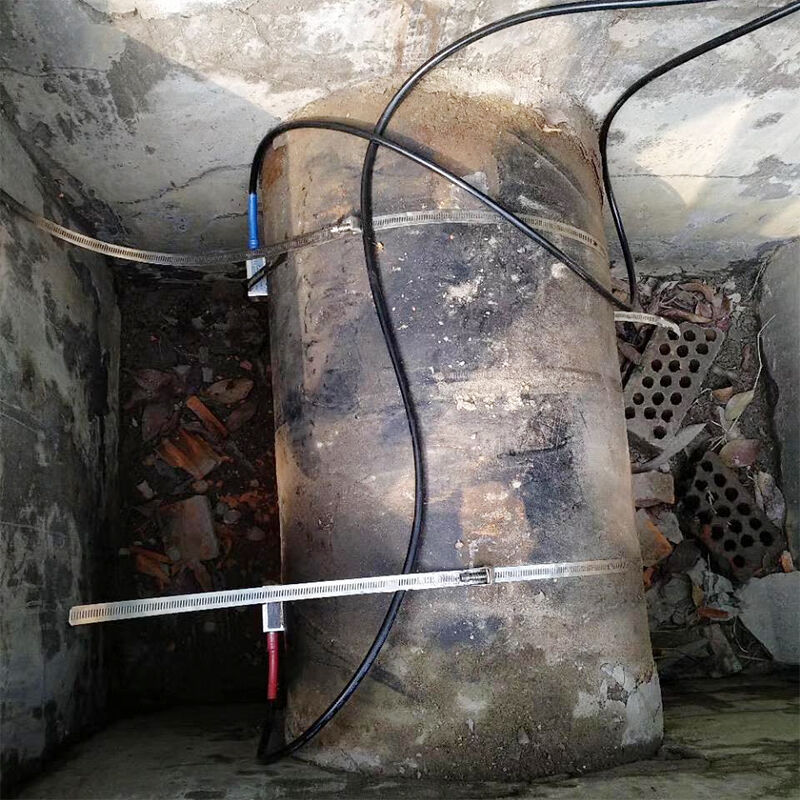

• Water treatment, hydropower station, petrochemical industry, agricultural irrigation, etc.

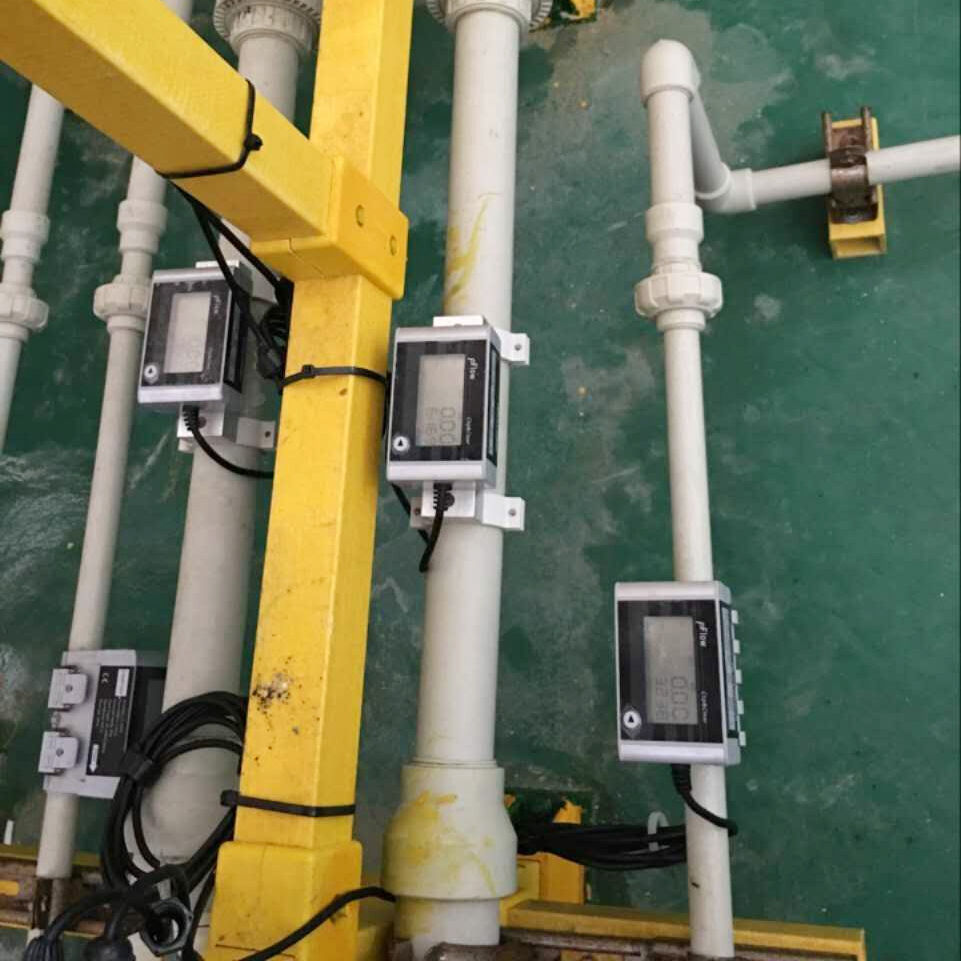

  Pure water, ultra pure water measurement, cleaning machine printing and dyeing factory
  Central air conditioning, intelligent buildings, household metering

Specifications:

Competitive Advantage:

• Easy and convenient installation, high flexibility. A pair of the transducer could fit all pipe size in the range.
• High accuracy (±0.5%), High speed computing ( sampling frequency achieve 300 pcs/s- including the calculate), good
  performance in very low velocity ( lowest flow at which the reaction starts 0.03m/s)
• Single medium can be measured, can be widely used in water treatment, pure water, ultra-pure water, petroleum and chemical industry, HVAC and other fields.
• All of our model could choose the BTU/ energy function as an option.
• We have 130℃ as the middle temperature transducer, also we have the high temperature transducer which could long time work in 180℃.

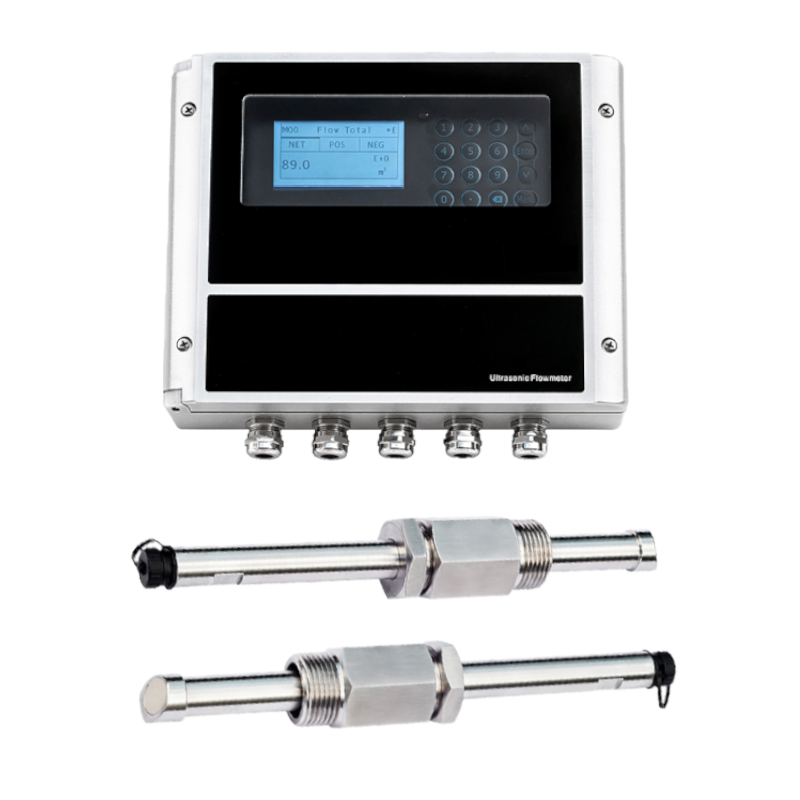

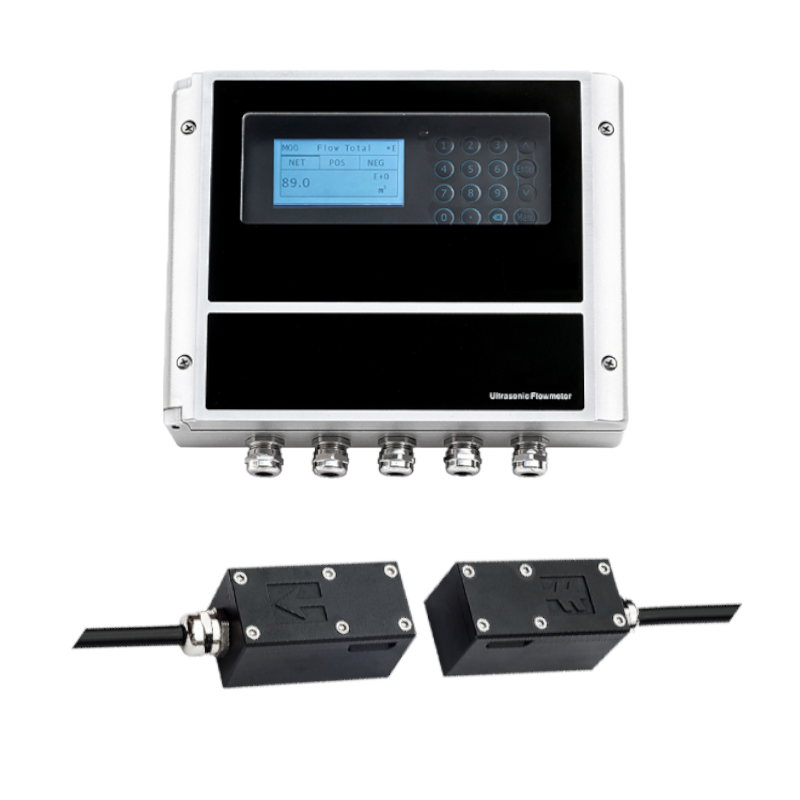

• There are two kinds of transducers for ultrasonic flowmeter: clamp-on transducer and plug-in transducer.
• The transducer adopts our unique manufacturing technology and matching technology, and the zero range can be controlled within 0.03 m/s. The time difference between each pair of sensors is less than 2 nanoseconds, thus effectively ensuring the authenticity of the measured time difference.

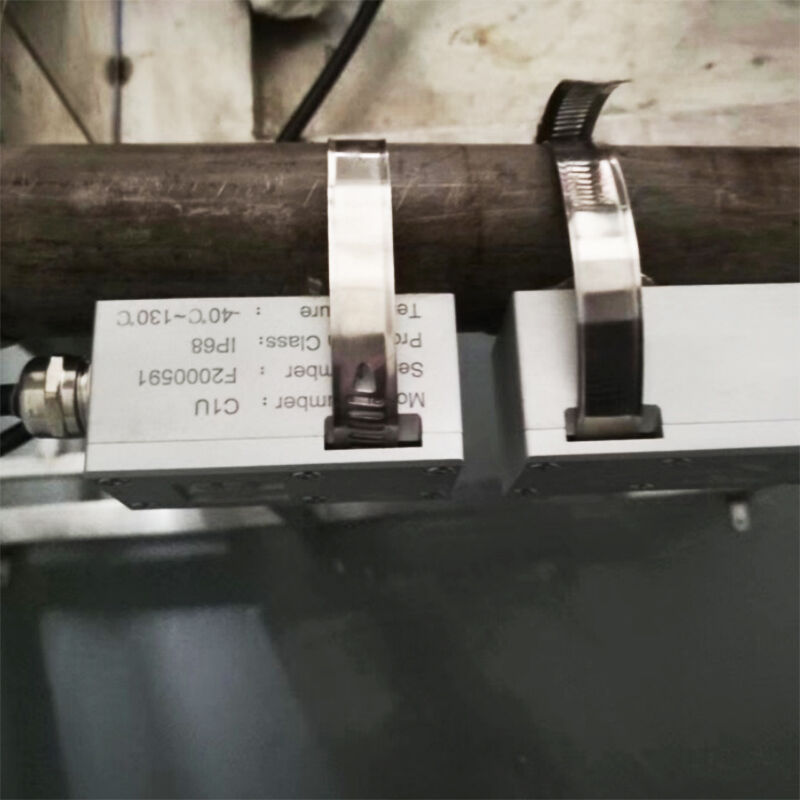

• The clamp-on sensor is easy to install and flexible. In the installation process, there is no need to stop the machine
  and stop the water. Especially for the measuring medium with strong acid and alkali, accurate flow can be obtained only by clamping and installing it outside the pipe wall.

FAQ：

1. Are you a factory or a trading company?
We are an integrated industry and trade enterprise with own factory.

2. Which products can you provide?
Our main products include load cell, linear displacement sensor, draw wire sensor, LVDT sensor, torque sensor, magnetostrictive sensor, pressure sensor and other sensors.

3. How much experience do you have in this industry?
We have been specializing in the production and sale of sensors for more than 25 years.

4. How many customers have you served?
We maintain cooperation with 5000+ clients in more than 150 countries from all over the world.

5. How can you guarantee quality?
We conduct production and management according to ISO9001 quality management system. All products have quality testing and dynamic balance before delivery by our pofessional QC.

6. What is the warranty period for your sensors?
One year.

7. Do you have products in stock?
Most models are available, please consult us for details.

8. What is the delivery time for your non spot product?
It usually takes 2 days.

9. Do you have customized service?
Yes, we support ODM/OEM.
