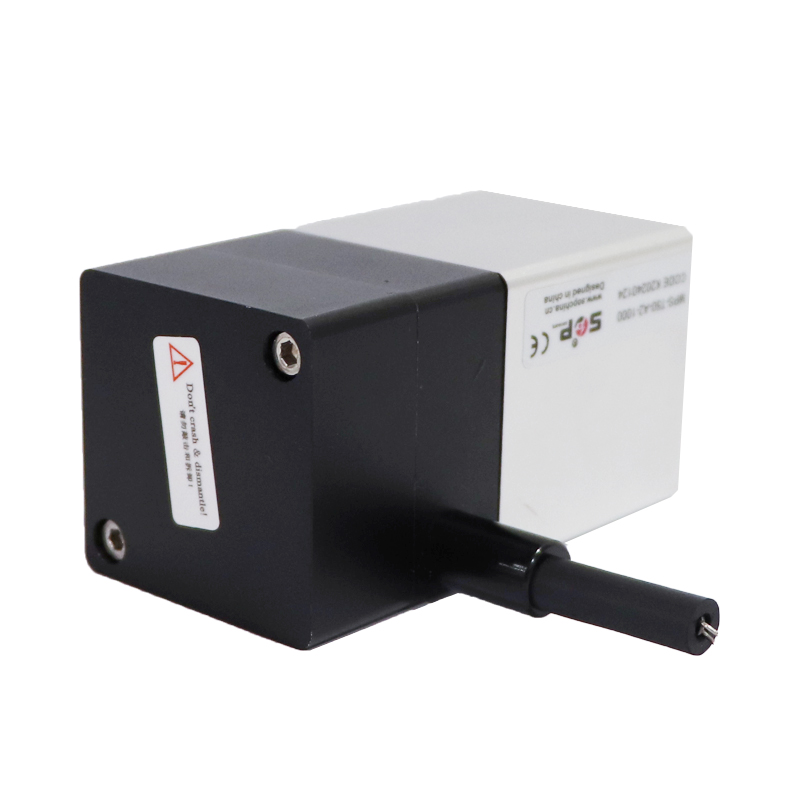

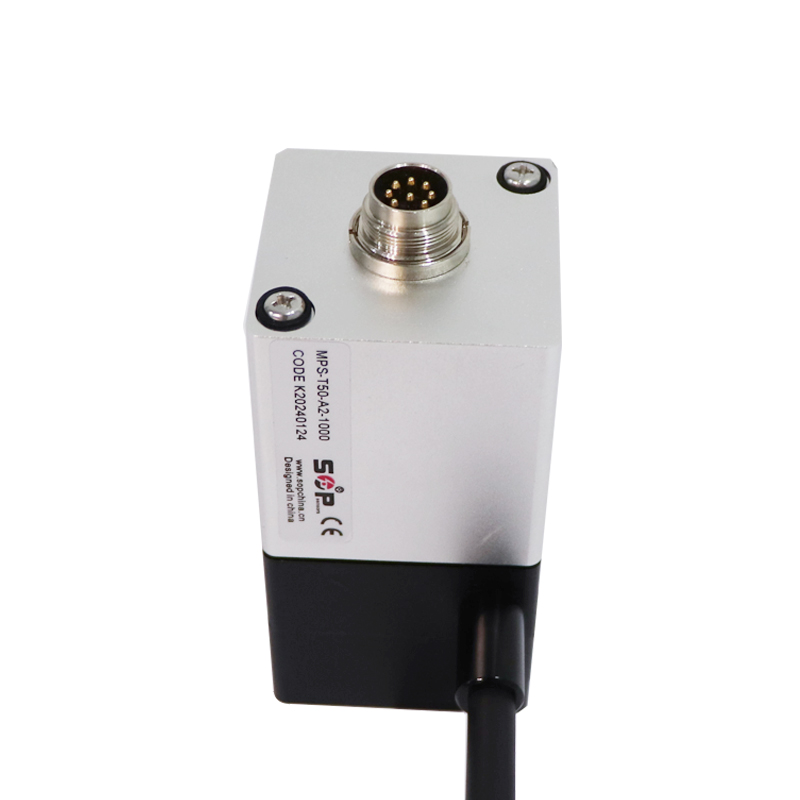

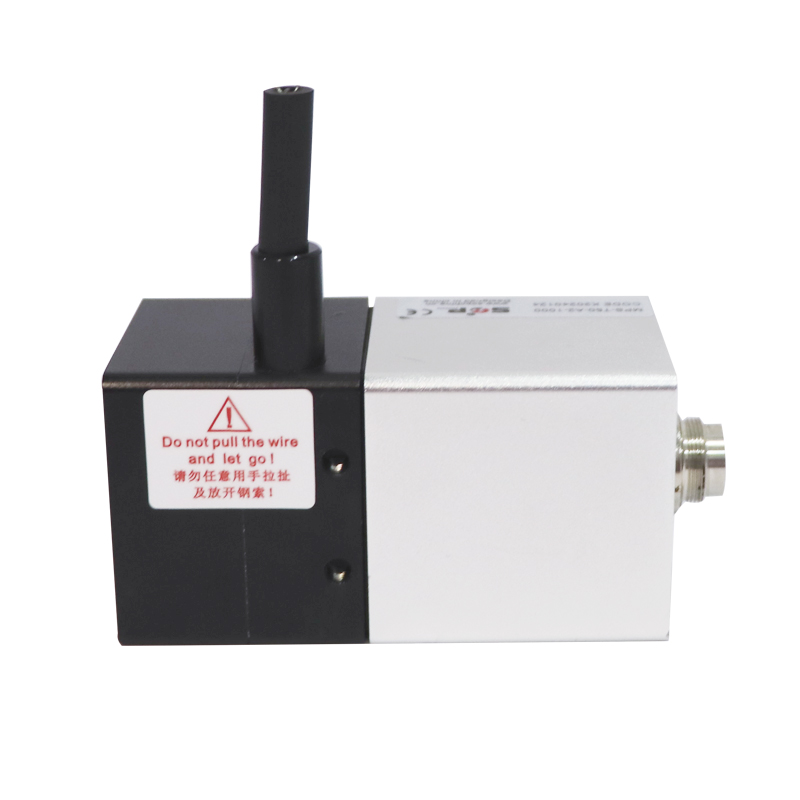

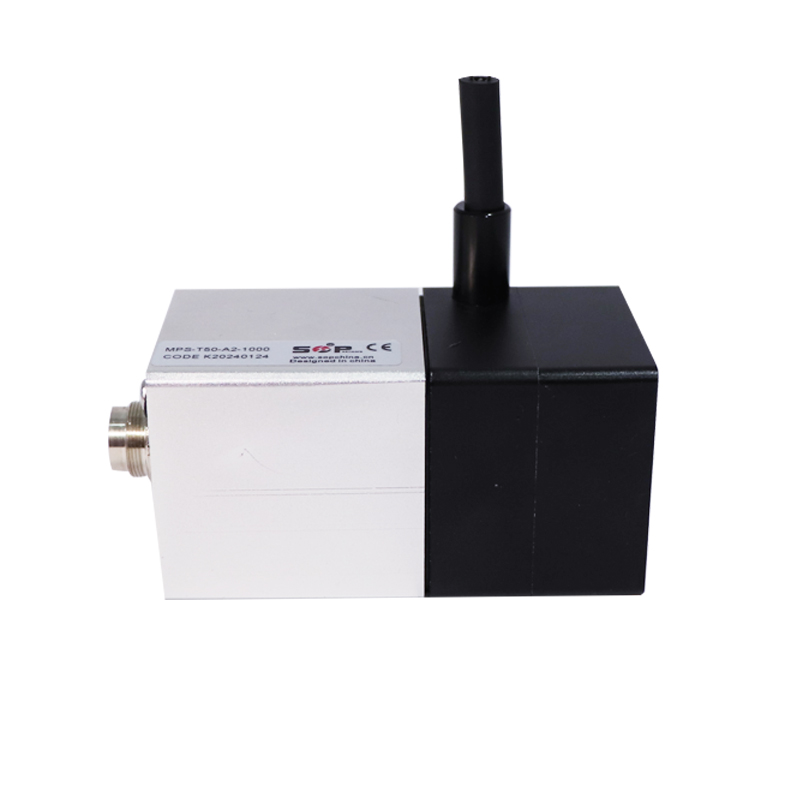

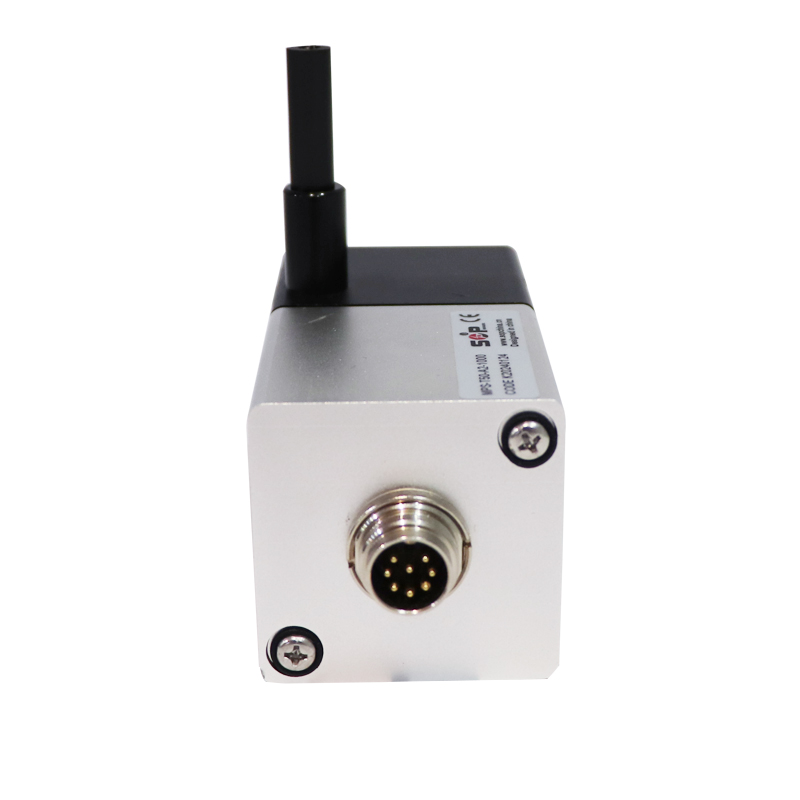

Hot Sale Customizable WPS-T-50 IP67 Draw Wire Transducer Provider

Hot Sale Customizable WPS-T-50 IP67 Draw Wire Transducer Provider

  • Overview
  • Inquiry
  • Related Products
Place of Origin: China
Brand Name: SOP
Model Number: WPS-T-50
Certification: CE
Minimum Order Quantity: 1pc
Packaging Details: Paper box
Delivery Time: 2 days
Payment Terms: TT
Supply Ability: 300pcs per day


Description:

  • What is draw wire sensor?

  • The draw wire sensor is a compact integration of the linear displacement sensor. It combines the advantages of angular displacement sensor, linear displacement sensor and gear and strip transmission. It is compact, versatile, easy to install and small in installation size. No need to compensate for gaps, sensors with high precision measurement, high repeatability measurement and high positioning accuracy, long stroke and long life.

  • The draw wire sensor, also known as draw wire encoder, or string potentiometer, or cable extension transducer, or rope encoder etc.

  • What's the function of the draw wire sensor?

  • The draw wire sensor is suitable for accurate measurement and positioning control. Equipped with digital indicator, it can also be used as measurement tool for manual measuring.



Applications:

  • WPS series draw wire sensor is widely used in storage positioning, dam protections, sluice gate control, screw machines, paper machines, sewing machines, sheet metal machines, printing machines, horizontal control equipment, construction machines, industrial robot, injection machines, woodworking machinery, elevators, air compressors, hydraulic machines, X-Y axis displacement, liquid level measurements and position control


Specifications:

Measurement type Resistance type live belt with built-in voltage/current conversion circuit
Linearity 0.1%
Measuring stroke 0-1000mm
Type of output model Voltage distribution type
Output method All analog quantities and module RS485
Shell material Aluminum alloy/metal
IP degree IP 67
