| Place of Origin: | Jiangxi,China |
| Brand Name: | SOP |
| Model Number: | SOPTB-002 |
| Application: | Force measurement |
| Minimum Order Quantity: | 1 piece |
| Packaging Details: | To be packed with small box. |
| Delivery Time: | 3-5 working days after shipment by Express |
| Payment Terms: | T/T,Wechat etc |
Description:

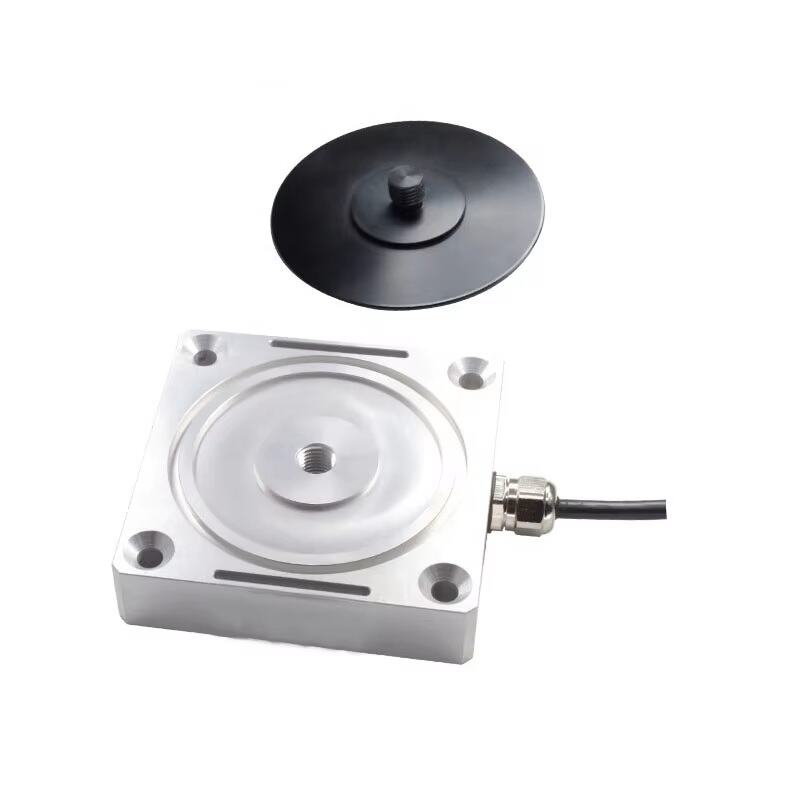

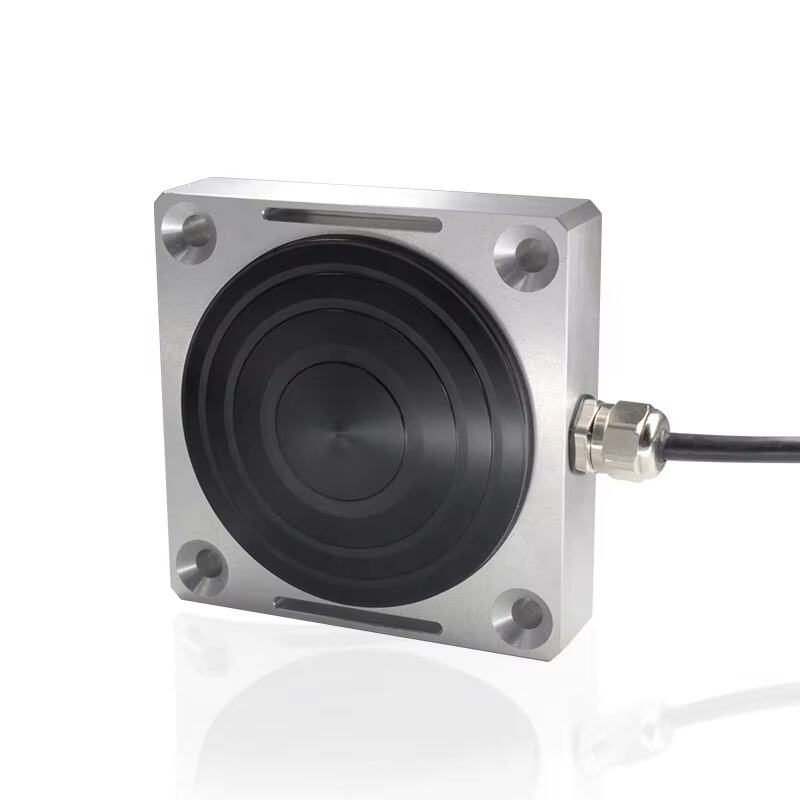

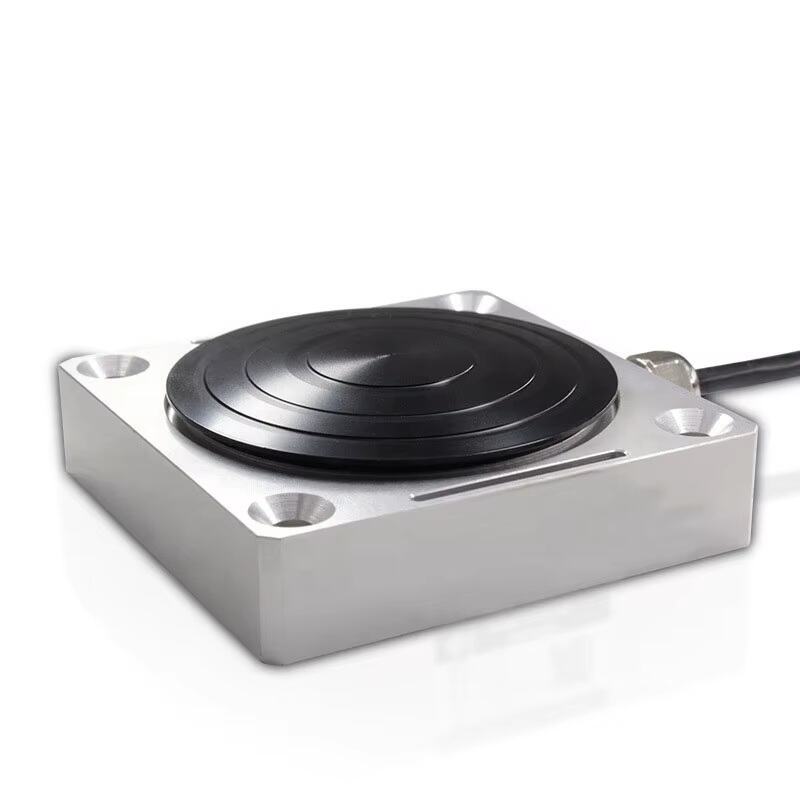

The sensor beam is made of stainless steel, with IP65 protection level, low drift, compact structure, light weight, high precision, fast response, long service life and strong anti-interference ability.
Applications:
It is suitable for force measurement and control, automation equipment, aging testing machine, key stress analysis and power-assisted device in 3C digital production.
Specifications:
| Capacity | 1-200kg |
| Output Sensitivity | 1.0-1.5mV/V |
| Zero point output | ±2% F.S. |
| Non-linearity | 0.3%F.S. |
| Hysteresis | 0.3%F.S. |
| Repeatability | 0.05%F.S. |
| Creep(30min) | 0.05%F.S. |
| Temp.effect on output | 0.3% F.S. / 10ºC |
| Temp.effect on zero | 0.3% F.S. / 10ºC |
| Material | Stainless steel/alloy steel/aluminum alloy |
| Operating Voltage Range | 5-10V |
| Operating Temp Range | -20-70℃ |
| Safe overload | 150% |
| Maximum Overload | 200% |
| Cable size | Φ3*2m |
| Cable ultimate pull | 10kg |
Competitive Advantage:
FAQ：
1. Are you a factory or a trading company?
We are an integrated industry and trade enterprise with own factory.
2. Which products can you provide?
Our main products include load cell, linear displacement sensor, draw wire sensor, LVDT sensor, torque sensor, magnetostrictive sensor, pressure sensor and other sensors.
3. How much experience do you have in this industry?
We have been specializing in the production and sale of sensors for more than 25 years.
4. How many customers have you served?
We maintain cooperation with 5000+ clients in more than 150 countries from all over the world.
5. How can you guarantee quality?
We conduct production and management according to ISO9001 quality management system. All products have quality testing and dynamic balance before delivery by our pofessional QC.
6. What is the warranty period for your sensors?
One year.
7. Do you have products in stock?
Most models are available, please consult us for details.
8. What is the delivery time for your non spot product?
It usually takes 2 days.
9. Do you have customized service?
Yes, we support ODM/OEM.
