| Place of Origin: | Jiangxi,China |
| Brand Name: | SOP |
| Model Number: | SOPZC-055 |
| Application: | Force measurement |
| Minimum Order Quantity: | 1 piece |
| Price: | 1-49 pieces US$XX,50-99 pieces,US$XX,≥100pieces US$XX |
| Packaging Details: | To be packed with small box. |
| Delivery Time: | 3-5 working days after shipment by Express |
| Payment Terms: | T/T,Wechat |
Description:

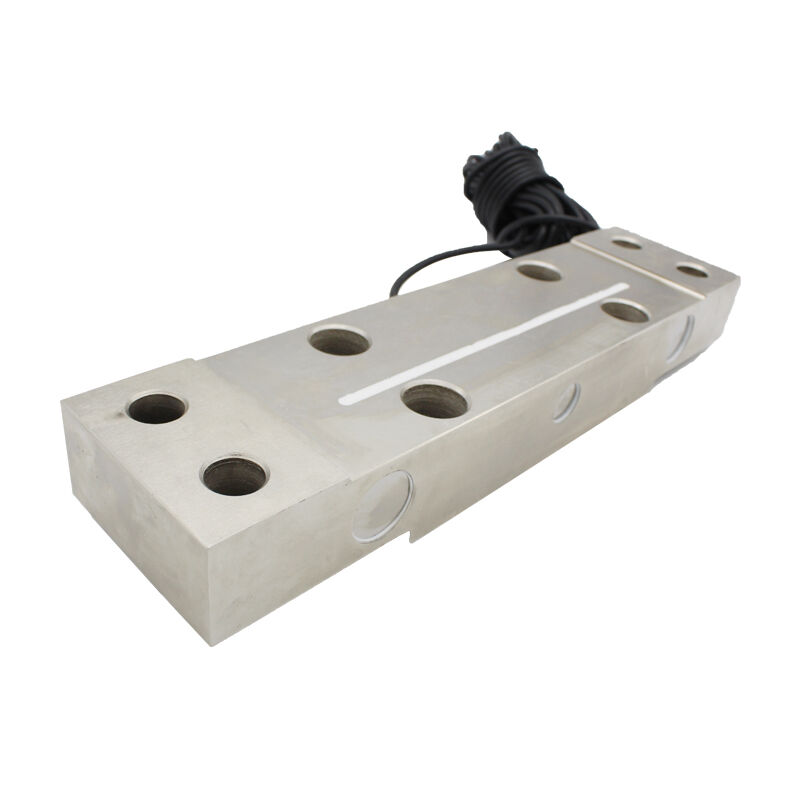

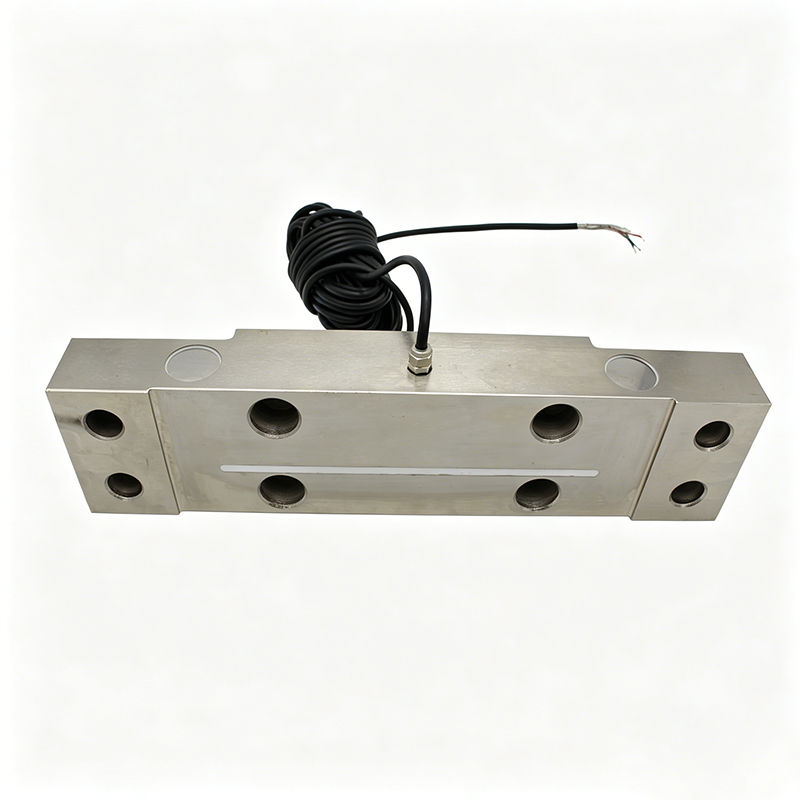

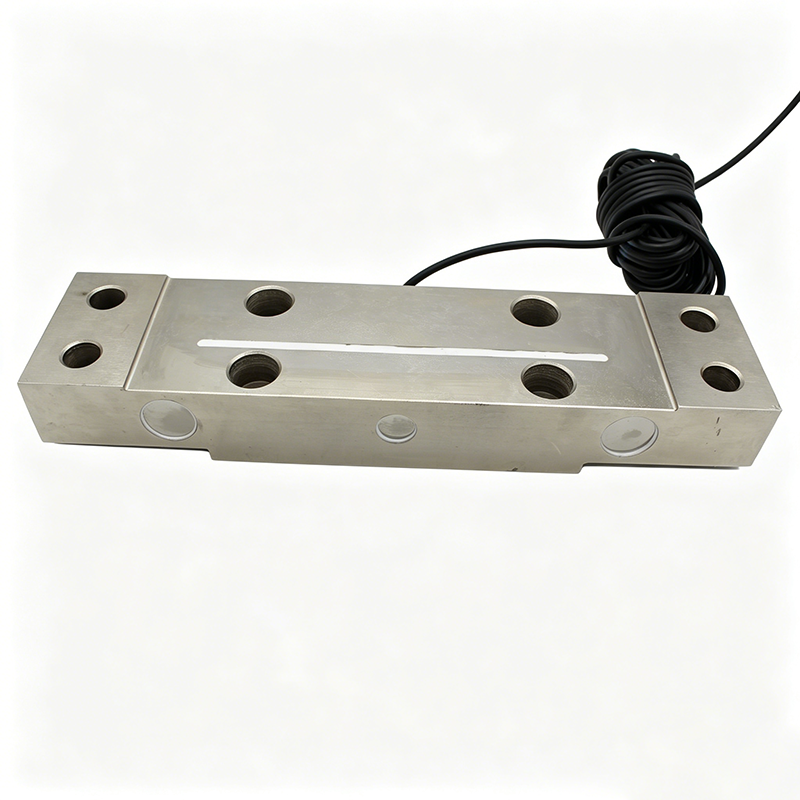

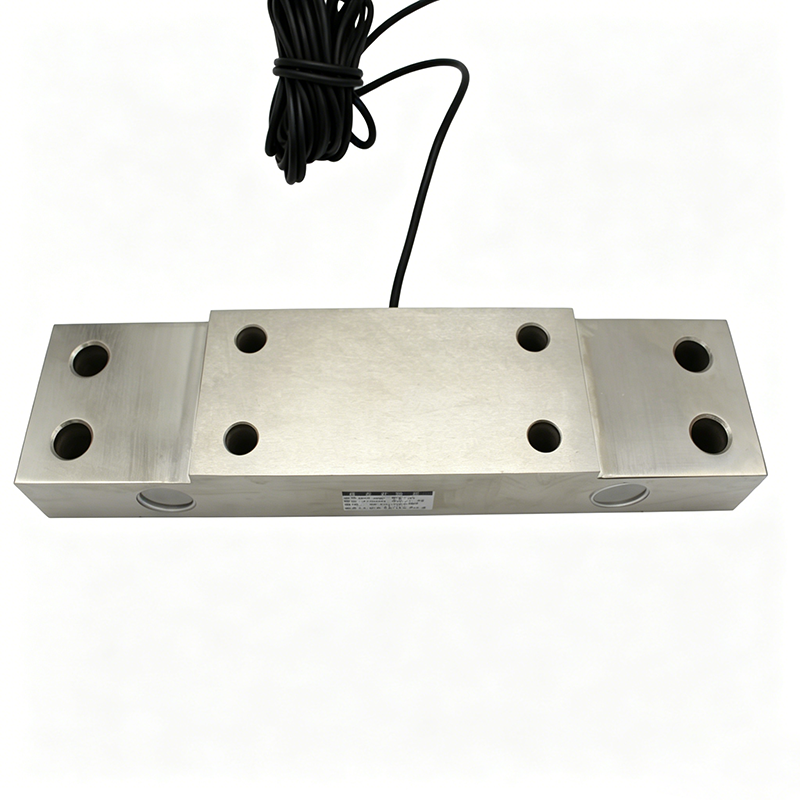

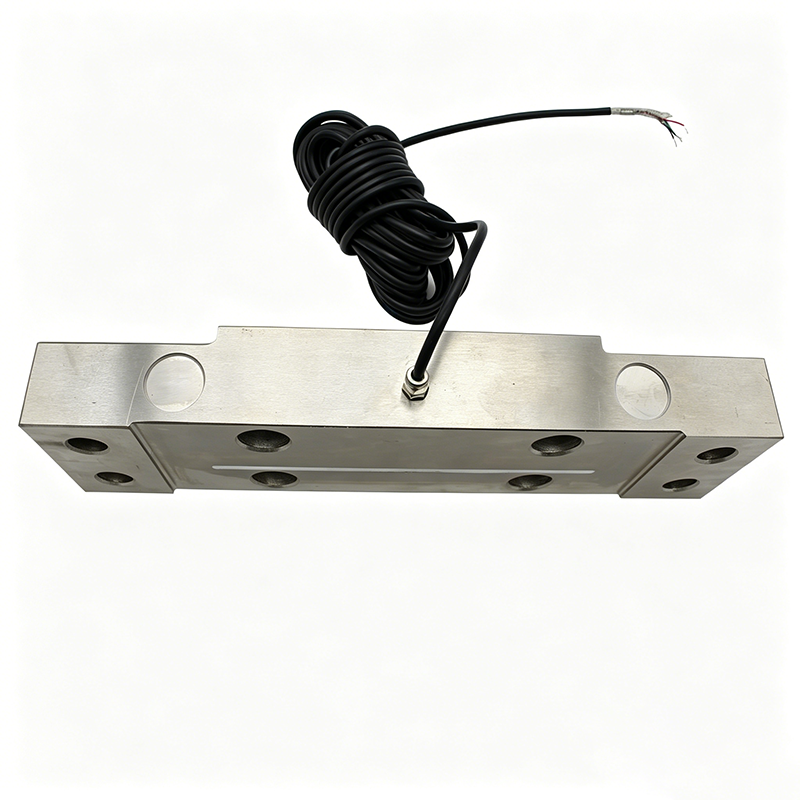

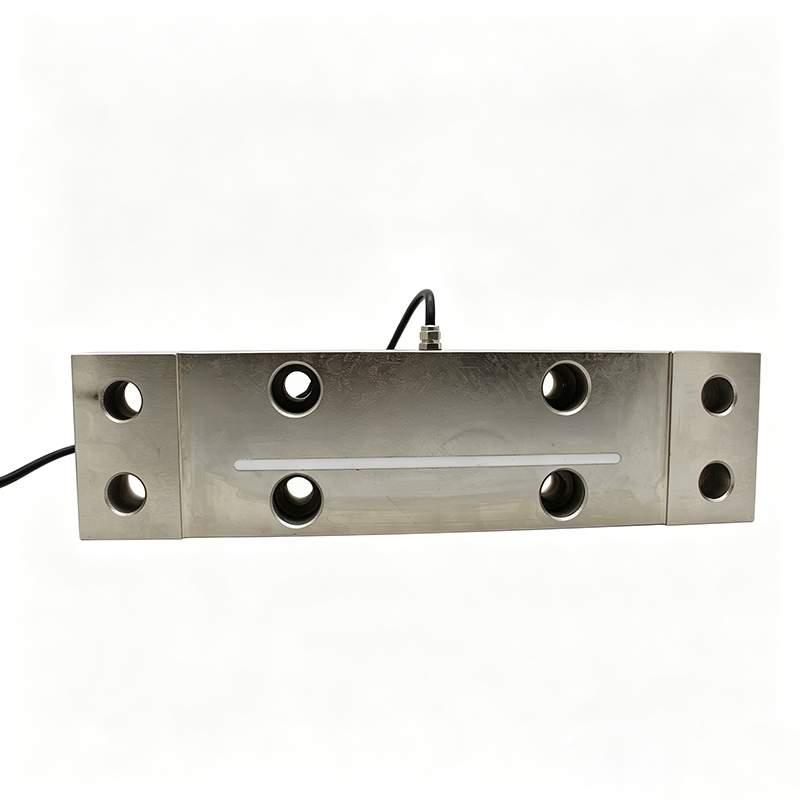

Bearing load cell is a special kind of load cell, which is installed under the bearing seat to measure the force of the bearing seat. The weight of the object will exert force on the bearing seat, and the sensor can detect the force of the bearing seat.
Applications:
Specifications:
| Capacity | 0-20T |
| Rated Output | 1.0±0.05mV/V |
| Zero Balance | ±2% F.S. |
| Non-linearity | 0.5%F.S. |
| Hysteresis | 0.5%F.S. |
| Repeatability | 0.5%F.S. |
| Creep(30min) | 0.5%F.S. |
| Temp.effect on output | 0.05% F.S. / 10ºC |
| Temp.effect on zero | 0.05% F.S. / 10ºC |
| Material | Alloy steel |
| Operating Voltage Range | 5-15V |
| Operating Temp Range | -20-80℃ |
| Safe overload | 150% |
| Maximum Overload | 300% |
| Cable size | Φ5*3m |
| Cable ultimate pull | 10kg |
Competitive Advantage:
High overall precision, stable performance, simple structure and easy installation.
FAQ：
1. Are you a factory or a trading company?
We are an integrated industry and trade enterprise with own factory.
2. Which products can you provide?
Our main products include load cell, linear displacement sensor, draw wire sensor, LVDT sensor, torque sensor, magnetostrictive sensor, pressure sensor and other sensors.
3. How much experience do you have in this industry?
We have been specializing in the production and sale of sensors for more than 25 years.
4. How many customers have you served?
We maintain cooperation with 5000+ clients in more than 150 countries from all over the world.
5. How can you guarantee quality?
We conduct production and management according to ISO9001 quality management system. All products have quality testing and dynamic balance before delivery by our pofessional QC.
6. What is the warranty period for your sensors?
One year.
7. Do you have products in stock?
Most models are available, please consult us for details.
8. What is the delivery time for your non spot product?
It usually takes 2 days.
9. Do you have customized service?
Yes, we support ODM/OEM.
